At CC Engineering, we are specialists in CNC metalworking. We’re equipped to handle single pieces and small to medium sized series. We can also handle urgent  and are real problem solvers!

CC Engineering can work almost any kind of metal or plastic for you, and specialises in exotic metals, which we also have in stock. We can work for example case hardening steel, tool steels, Titanium, Monel, Hastelloy, RVS316Ti, RVS431. We also supply turned/milled parts in combination with (vacuum) hardening, sharpening and provide post-treatments such as coating, blasting, anodising or polishing.

DMG MoriOur machinery consists of a number of DMG Mori turning/milling machines with the latest technology in the field of CNC metalworking. For example, we are one of the few in the Netherlands to have 2 large CNC turn/milling combinations at our disposal with which we carry out work for third parties. These so-called ‘multi-task’ machines produce a complete product, including turning, milling and drilling operations on both sides, in one set-up. This makes us extremely versatile, very efficient and absolutely clean, with minimal risk of errors or damage and with very fast production times. If you scroll further down, you’ll see the exact machine specifications.

At CC Engineering, we are always at your service to help solve your problems and fabricate and deliver parts at short notice. Take a look at our portfolio for an impression. Custom or special parts are also among the possibilies, of which a selection is shown on the portfolio page. Contact us to explore the possibilities and to discuss your options.

CNC Turning (multi-task CNC)

Dimensions and turning capacity

Type: DMG CTX BETA 1250TC NR1 multitask turning/milling combination – 6 axes

Diameter: 500 mm
Length: 1250 mm
Spindle capacity: 102 mm
Subspindle capacity: 56 mm

Machine features: Direct measuring system, direct-drive motors, motor and guide cooling, Schunk chucks, 5-axis milling head, Capto clamping, collection tray, hose loader option, high cooling pressure, subspindle, internal cooling, filter system with 800L cooling water and 24 position tool magazine. The machine can be programmed with both Siemens control and with CAD/CAM.

Type: DMG CTX BETA 1250TC NR2 multitask turning/milling combination – 6 axes

Diameter: 500 mm
Length: 1200 mm
Spindle capacity: 102 mm
Subspindle capacity: 80 mm

Machine features: Direct measuring system, direct-drive motors, motor and guide cooling, SWM chucks, 5-axis milling head, HSK clamping, high cooling pressure, high power heavy subspindle, internal cooling, filter system with 1000L cooling water and temperature control and 24 position tool magazine. The machine can be programmed with both Siemens control and with CAD/CAM.

CNC Milling (machining centre)

Dimensions and milling capacity

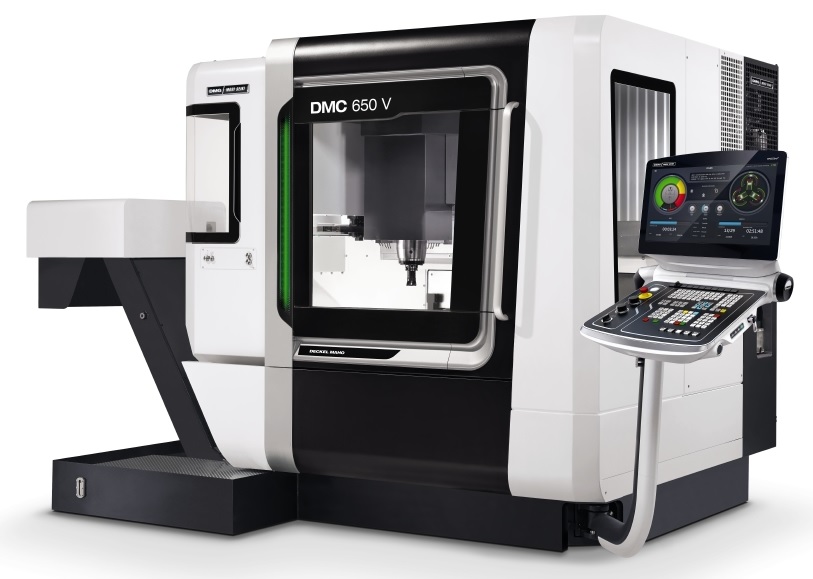

Type: DMG DMC 650 V – machining centre

Length: 650 mm
Width: 500 mm
Height: 450 mm
Magazine: 30 pockets, chain

Magazine features: Direct measuring system, direct-drive motors, motor and conductive cooling, mist extraction, 5-axis centric machine clamps, HSK clamping, high cooling pressure, 14000 rpm milling spindle, internal cooling, filter system with 600L cooling water and 30 position tool magazine. The machine can be programmed with both the Siemens control and with CAD/CAM. Very stable fast machine with 42/min displacement. Equipped with a.o. Schunk hydro-clamping holders.

Measuring

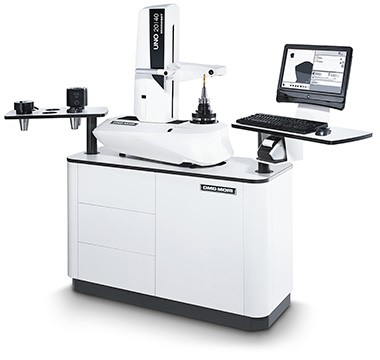

Machine: DMG Mori / Haimer Uno 40 Autofocus

Width: 400 mm
Height: 400 mm

Machine features: Laser, camera, autofocus, various adapters, labelprinter en CAM. Accuracy: 0.002mm.
